Introduction to LCD TV Repair

This month article is about the basic LCD TV repair. I do get emails from beginners asking about how to understand and troubleshoot LCD TVs. Although this is not a complete article about LCD TV repair, I believe this article in some ways could help them in understanding the main function of the important boards found in LCD TVs. Let’s start.



lcd tv repair





A-  Power Board

B-   T-con Board

C-   EMI Filter board (In other designs this board is built into the Power Board)

D-  Inverter Board (In some designs this board is built into the Power board and is called as I/P board)

E-   MainBoard

F-    Jackpack

G-  Side Key Panel/Power Control/Remote Receiver Unit (IR/LED control)

H-  Left Speaker

I-      Right Speaker

J-     LCD panel

K-  LVDS cable



The function Of LCD TV section

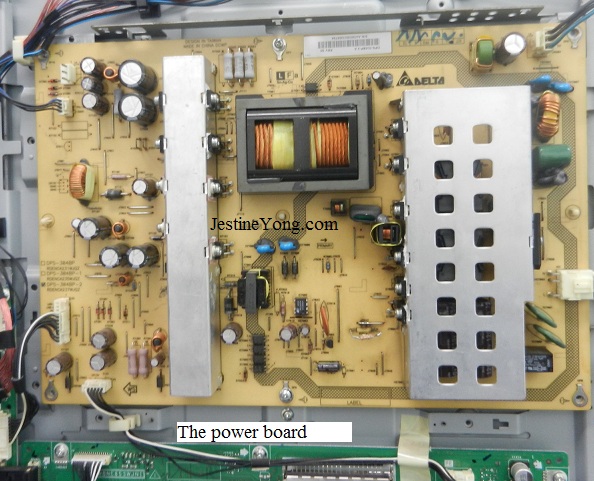

Power Board

 lcd tv power board

The Power Supply Board is usually the biggest and heaviest board found inside the LCD TV. Some repair techs call power supply board as “Power Supply Unit” and “Power Supply Module” or just “PSU”. It converts the main AC supply into DC voltages that can be used by the circuit within the LCD TV.

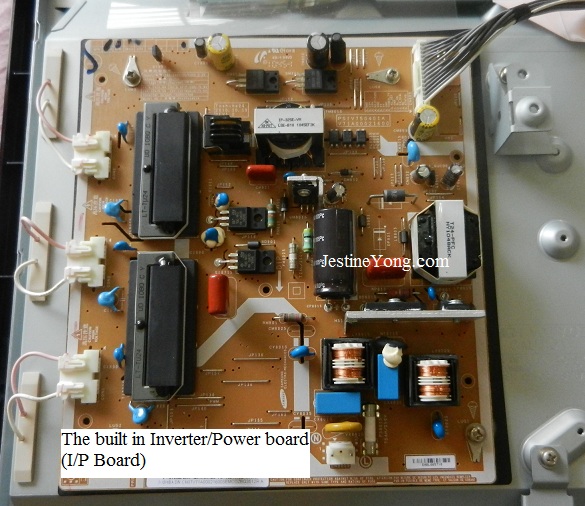

Sometimes the power board is joined together with inverter board and is called as I/P board.

inverter power board

Common faults- No power, low power, power blink and intermittent no power.

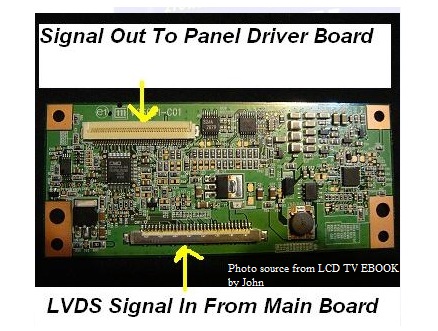

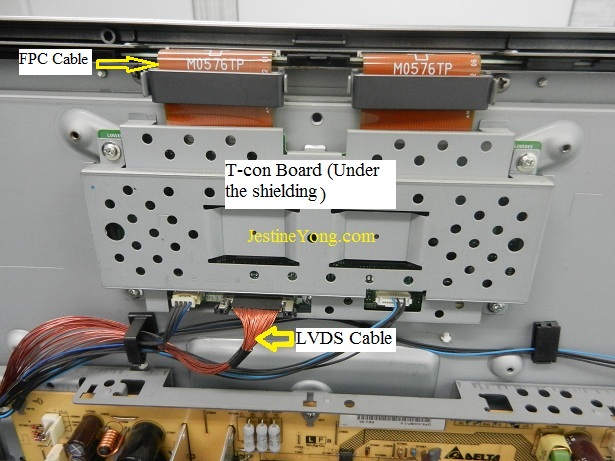

Timing Controller Board (T-con board)



The T-Con Board is the smallest board found inside LCD TV and is usually only found in LCD TV's.  The function of T-con board is to control logic signal of gate and source for driving TFT LCD. The T-Con Board is sometimes referred to other names, such as "Controller Board," or "Control Board."

tcon board

A Typical T-con Circuit Board

Common faults- White Display, No display, Double image, Display distortion (black and white vertical bars on the screen). Multiple vertical/horizontal lines across the screen.

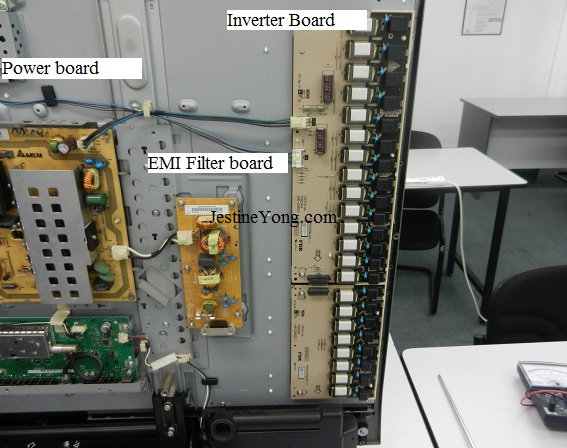

Inverter board

lcd tv inverter board

The inverter boards are usually found along the edges nearest to the TV Panel and are only found in LCD's. These boards function is to convert the low voltage DC supplied (12V or 24 V) by the SMPS into a high AC voltage (500 to 1500 Vrms) to light up the backlights. These boards can be found as a single board or built in with the power board called as I/P board.

Common faults- Display shutdown after few seconds, Dim display

Mainboard

lcd tv mainboard

The simplest way to identify the Main Board is to look for the circuit board with the audio and video inputs and outputs.Sometimes the Mainboard is called as Motherboard, Main Unit, Digital board, Scaler board, A/V board, Main Module, Logic board or even A/D board. The function is to take in the video and audio signals and convert the analog video signals into digital signals that can be sent by the LVDS IC (low voltage differential signaling) to the T-con board.



Note: Sometimes the audio section/RF Input/ Rear Inputs is separated from the mainboard.

Common faults- No display, no color, screen full of vertical lines after sometimes, no sound, horizontal lines and block, sometimes the LCD TV fault (usually display problem) can be due to software problem where you need to update the software.

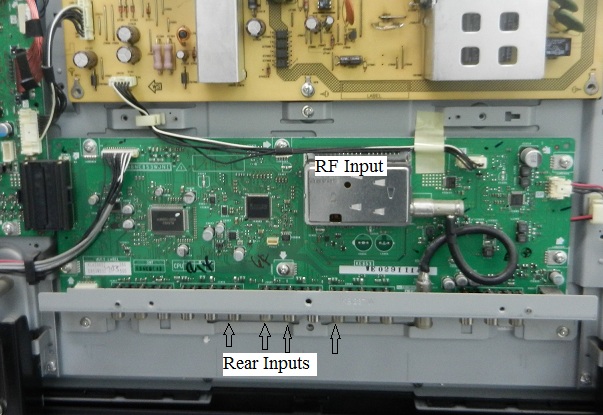

Jackpack Section





The audio signal is taken to the audio processor and then audio amplifier which then drive the left and right speakers.

Note: Sometimes the audio section/RF Input/Rear Inputs is separated from the mainboard (as seen from the above photo) and is called as Jackpack or Signals receiving board.

Common faults- No sound, distorted sound, High Pitched whine, no TV reception, unable to tune to certain blocks of channels, channels change randomly.

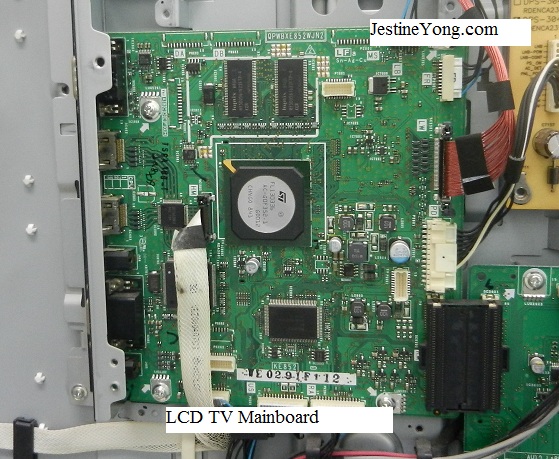

Below is the all in one Mainboard (Key Panel, Audio, RF input, Rear Inputs, Ram and Main MCU.

lcd tv mainboard

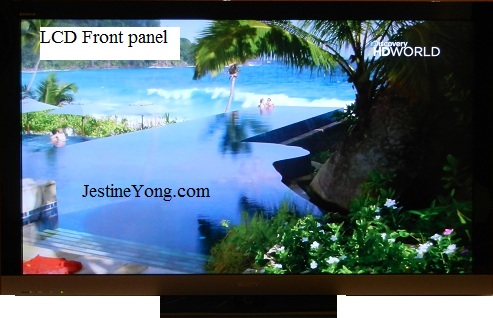

LCD Panel

lcd tv panel

LCD stands for liquid crystal display(LCD ) and it is a thin, flat electronic visual display that uses the light modulating properties of liquid crystals (LCs). LCs do not emit light directly thus backlights are needed to make these LCD displays visible.

Common Faults- Vertical/horizontal thin line/s or bar, white display, garbage display.

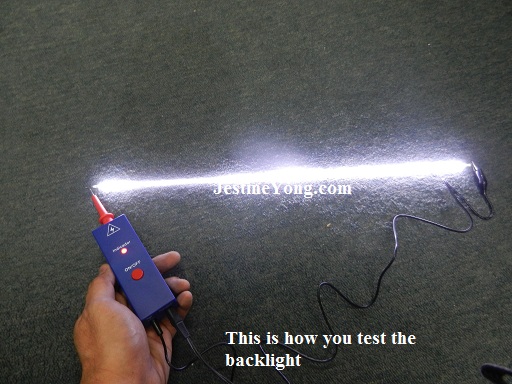

Backlights (Lamps)

lcd tv backlight

The function of backlights (CCFL or EEFL) is to illuminate the LCD from the back of the display panel.

Common faults-Display shutdown after few seconds and display flickering

You can test the backlight by visiting my blog at :

http://www.jestineyong.com/review-of-the-blue-ccfl-tester/

Hope this article is useful to those who wish to enter the field of LCD TVs repair.
